Ureka | Products | Loctite 55 Pipe Sealing Cord

Product overview

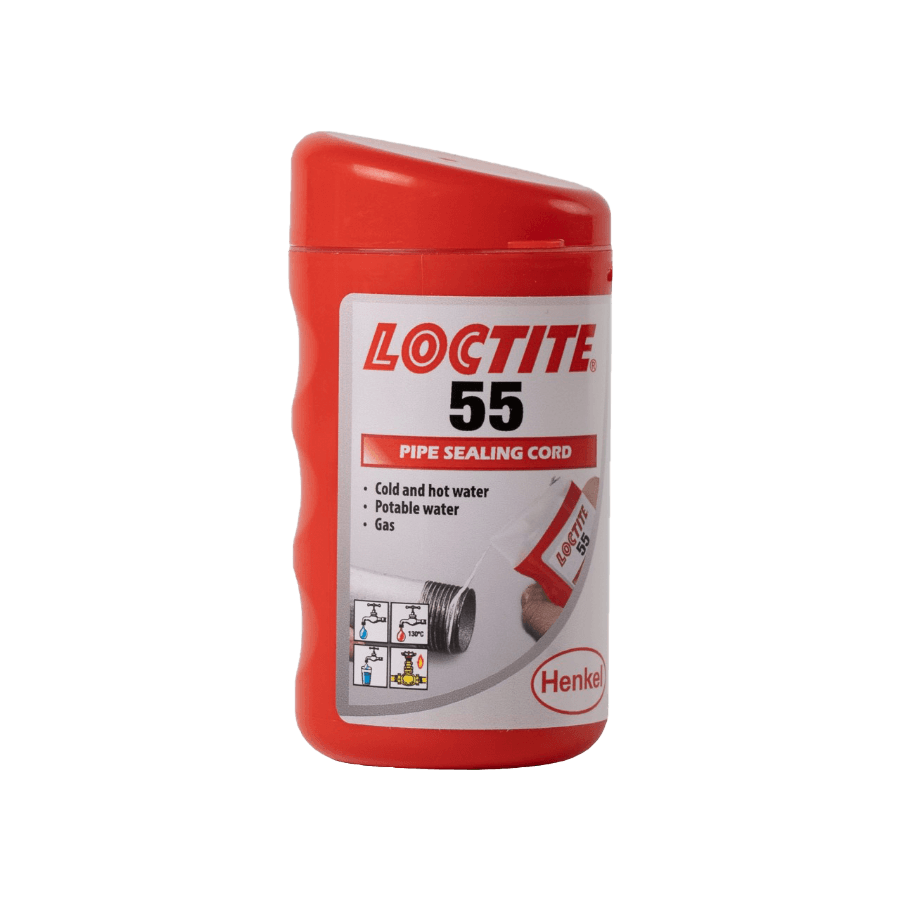

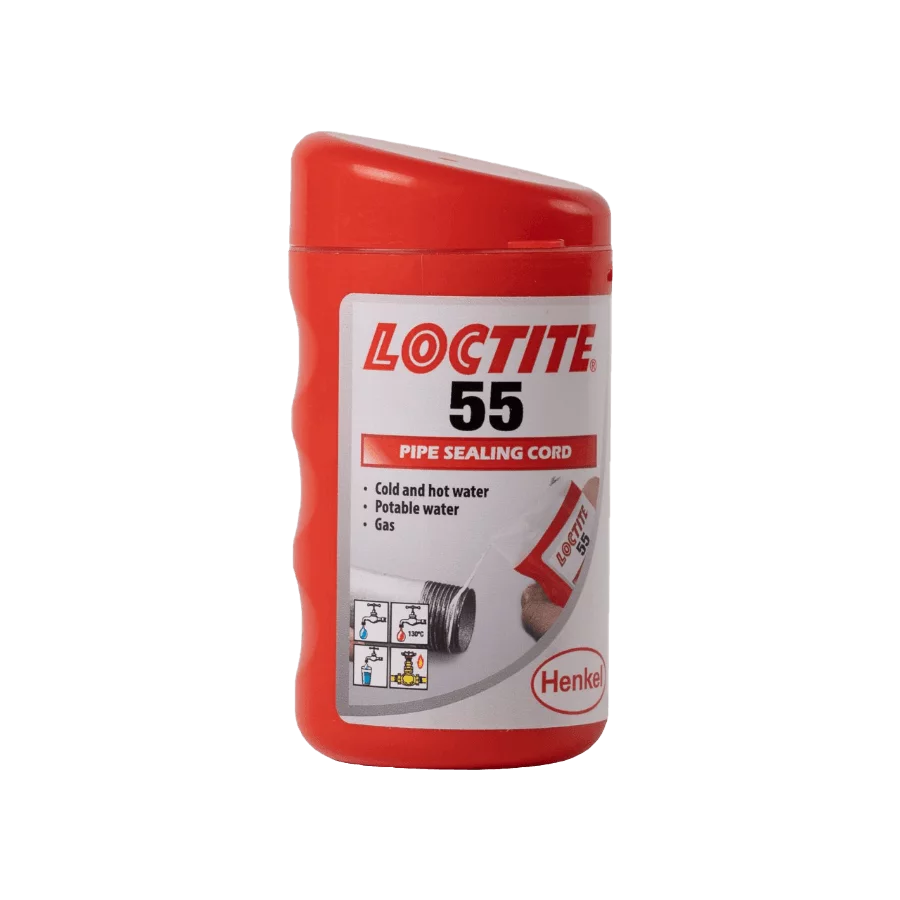

Loctite 55 thread has been developed to replace the pastes, hemps and tapes normally used. It instantly seals (irrespective of temperature) domestic and industrial pipe systems during assembly. Can be safely and confidently used with drinking or waste water (hot or cold), gas, or compressed air.

It needs no cure time and results in an immediate, full pressure seal. The product has approval for gas and potable water and is certified to NSF/ANSI, Standard 61.

Featured properties

General purpose, threaded pipe and fitting sealant
For a quick, easy and reliable seal
Non-curing, immediate, full-pressure seal
DVGW/KTW approval for gas and potable water
WRAS listed – approval number 1807518, meets BS 6920 for potable water: 0808533
Tested in accordance with EN 751-2 Class ARp and DIN 30660; certified to NSF/ANSI, Standard 61

Applications

Sealings can be safely Made on brass, copper, stainless steel, cast iron, galvanised, chromed and nickel plated parts. Supplied in a handy, pocket sized, protective container complete with built-in cutter.

Directions For Use:

1. Clean parts with a wire brush prior to application of product.

2. Hold the end of the Pipe Sealing Cord against the male nipple with one finger approximately two threads away from the end.

3. Wind the fiber onto the pipe threads in the same direction of the thread helix starting from the end of the pipe. For optimum performance, the grooves of the threads should be filled without completely masking the pitches of the thread.

NOTE: It is not necessary to follow the valley of the thread.

4. CAUTION: Do not over-apply the Pipe Sealing Cord. Excessive material tends to be pushed off as fittings are assembled, and it also becomes mechanically more difficult to complete the engagement.

5. Cut the required length off with the integrated cutting tool and smooth the loose end onto the pitches of the pipe thread.

6. LOCTITE 55 Pipe Cord™ can be adjusted up to 45° after tightening.
