multiiiibead Smart Adhesive Dispensing Gun System

PRODUCT OVERVIEW

The multiiiibead™ Dispensing Gun is part of the Smart Adhesive Application System.  This innovative system enables clean and precise application across the width of the area to be bonded.  Using the correct settings, no adhesive spills on to areas it shouldn't and no adhesive is left uncovered.

The dispenser heads are available in widths of 180mm (7”), 300mm (12”) and 400mm (16”). Dispenser nozzles are disposable. Sachets of adhesive are quick and easy to load without any contact with the glue; leaving workspaces and operators clean. As they are used, the sachets are compressed, so that empty sachets form small discs which are easily disposed of. This system ensures best yield and minimal waste.

Smartfoils used with the multiiiiBead gun:

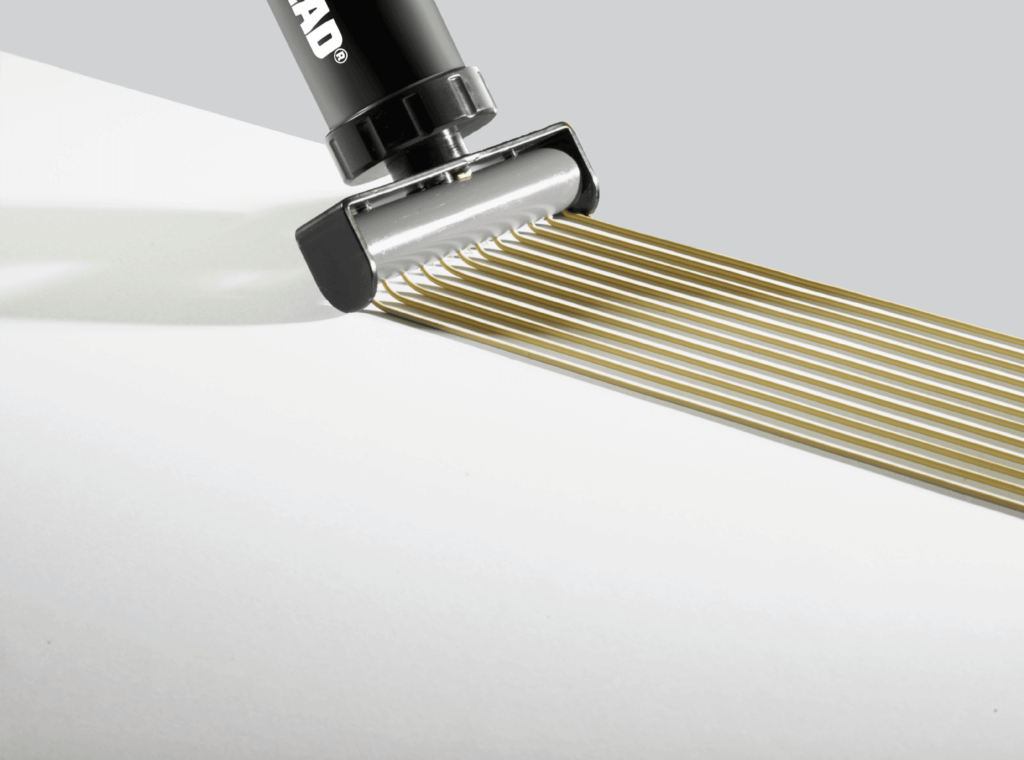

• Cladstikk 12 Surface Bonding Adhesive
• Cladstikk 19 Surface Bonding Adhesive

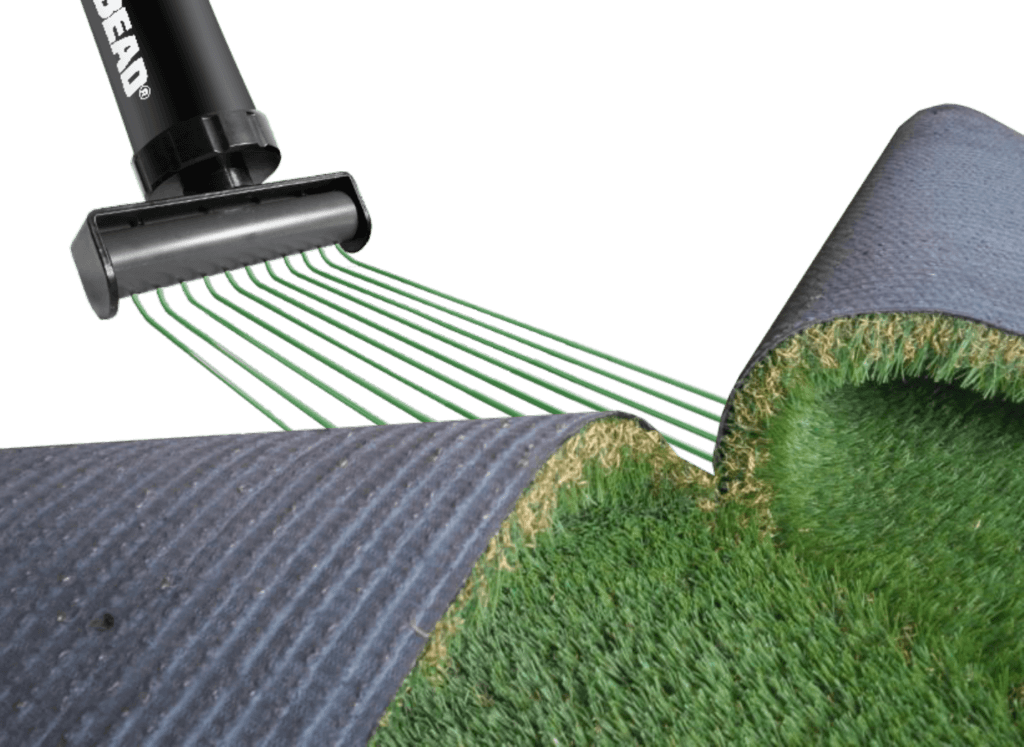

• Turfstikk MS210 MS Polymer Synthetic Grass Adhesive

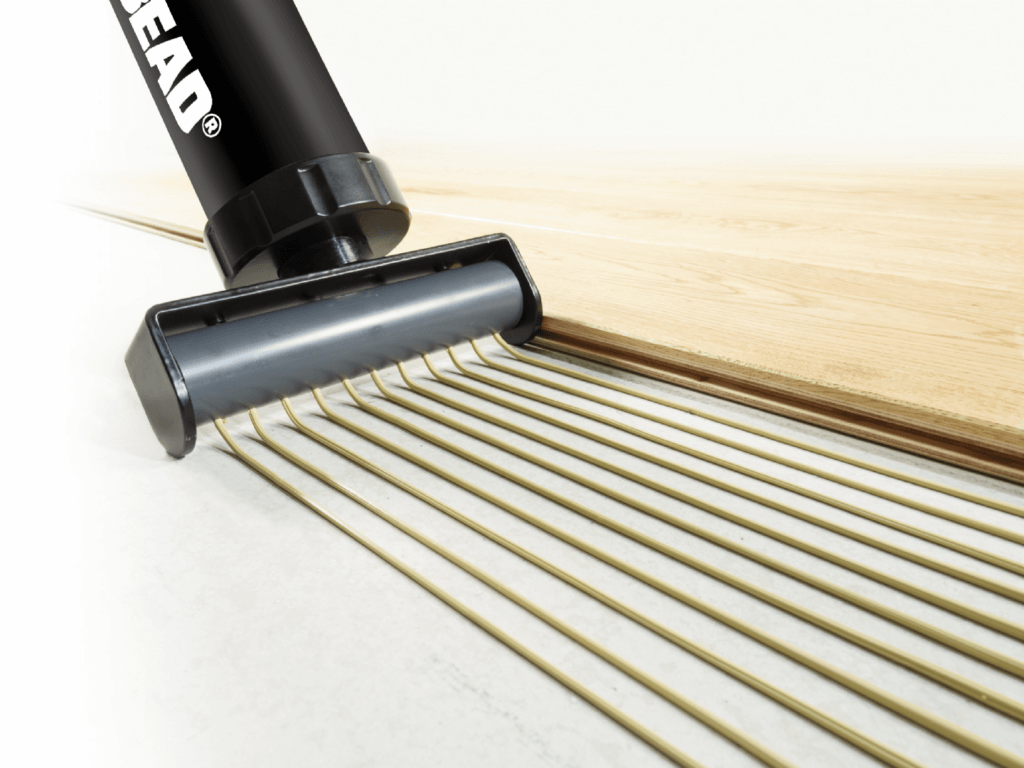

• Woodstikk 10 MS Polymer Wood Flooring Adhesive
• Woodstik 19 MS Polymer Wood Flooring Adhesive

What comes with the multiiiibead gun?

• 1 x 18V 2Ah lithium Bosch battery
• 1 x multiiiibead™ gun case
• 1 x multiiiibead™ MB01 disposable nozzle
• 1 x Bosch battery charger
• 1 x multiiiibead™ gun head bracket 180mm
• 1 x multiiiibead™ gun handle(attaches to the barrel of the gun)

Properties

• Faster adhesive application
• Increases coverage by as much as 25%
• Clean hands and workspace
• Ergonomic design
• Reduces fatigue
• Significantly reduces waste
• Boosts productivity by as much as 30%
• Portable

Nozzles

multiiiibead Disposable Nozzle

multiiiibead MB06 Single Bead Disposable Nozzle

multiiiibead™ Dispensing Gun's history

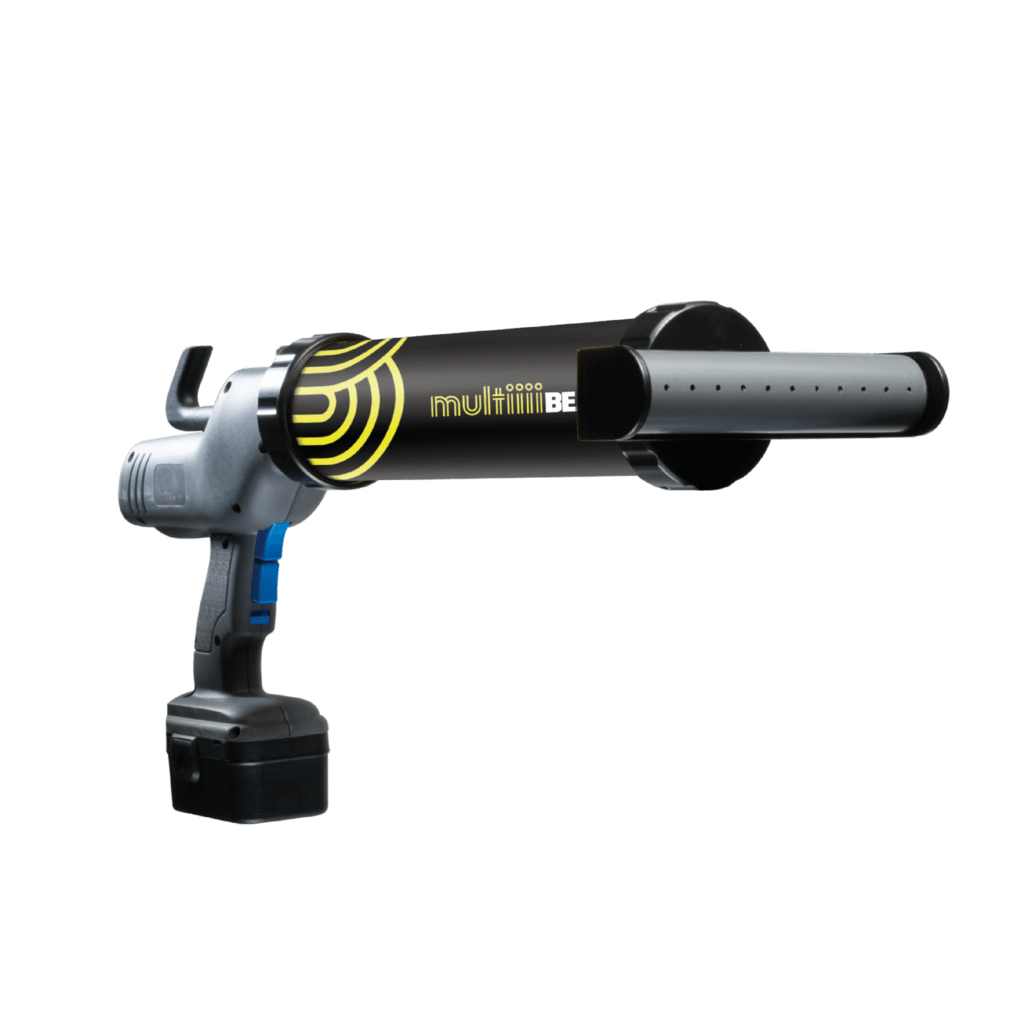

The multiiiibead™ Dispensing Gun with the 1.5ltr barrel is commonly known as the Cladstikk dispensing gun, and the Gekko G2 dispensing gun. Click the link below to learn what applications the multiiiibead™ Dispensing 1.5ltr Gun is used for.

multiiiibead™ 1.5ltr gun

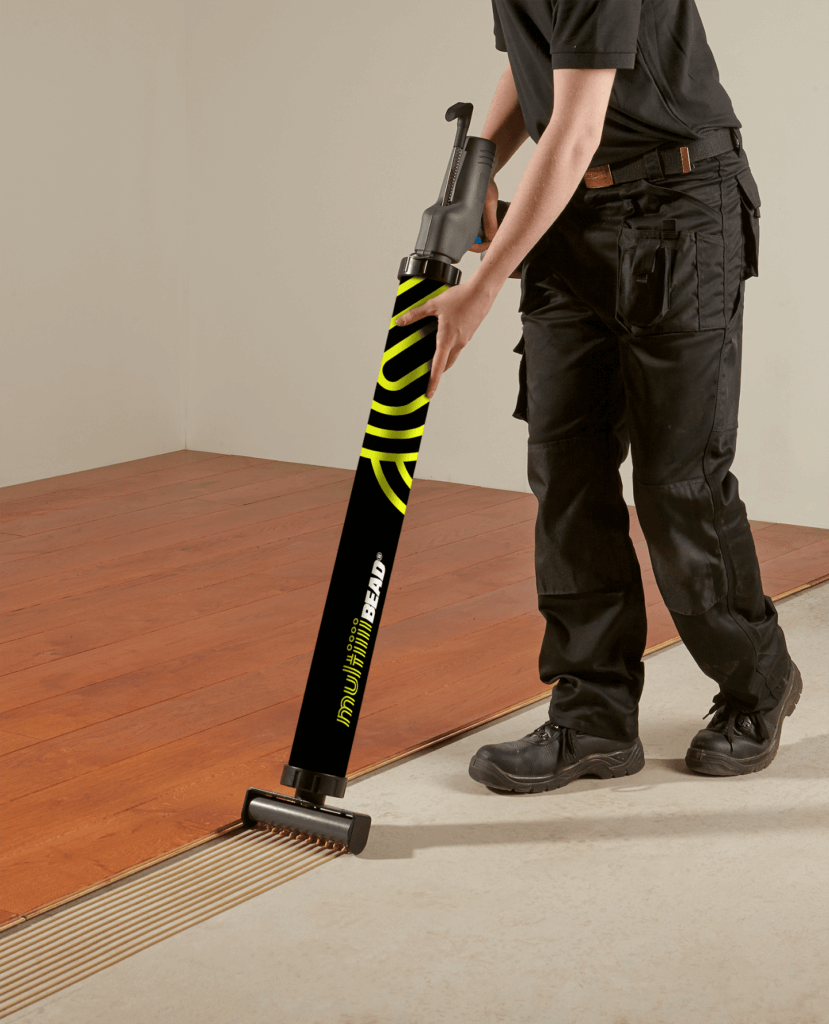

The multiiiibead™ Dispensing Gun with the 3ltr barrel is commonly known as the Woodstikk dispensing gun, Turfstikk dispensing gun, and the Gekko G1 dispensing gun. Click the link below to learn what applications the multiiiibead™ Dispensing 3ltr Gun is used for.

multiiiibead™ 3ltr gun

PREPARATION AND APPLICATION

1.  Install battery pack into tool.  Align the base of the power tool with the notch inside the battery and slide the battery pack firmly into the handle until you hear the lock snap into place.  To turn the power tool on, squeeze the trigger switch.  To turn the tool off, release the trigger switch.  Trigger lock safeguards against inadvertent release of material

2.  Trigger switch and speed dial.  Turn the speed dial to an appropriate speed for your application. Then, press the trigger switch to start the flow of material. Release the trigger switch to stop the flow.

3.  Plunger rod handle.  To adjust plunger rod press & hold the plunger rod release trigger. Push or pull plunger rod handle to desired position.  Release plunger rod release trigger.

4.  Removing the dispenser head.  Turn the dispenser head anti-clockwise to unscrew from the barrel. Do not pull or cross the thread as this will render the gun inoperable.

5.  Loading/re-loading an adhesive sachet.  While squeezing the plunger rod release trigger, pull back the plunger completely. Insert the adhesive sachet into the barrel and cut off the sealing clip. Turn  dispenser head clockwise to screw dispenser head back on to the barrel.

6.  Applying the adhesive.  Apply consistent pressure to the trigger to dispense adhesive. Releasing the trigger instantly stops the adhesive flow. Pull the gun at a steady pace.

7.  Removing a used adhesive sachet.  Unlock and remove dispenser head, and allow plunger to push out the used sachet. Clean out any adhesive residue in the barrel. Dispose of sachet according to local waste regulations.

HANDLING AND STORAGE

When not in use, place gun on its side on a stable surface where it will not fall or caus a trip or fall hazard. Do no leave unused for more than 15 minutes because adhesive will begin to skin over setting time dependent on adhesive being used. Refer to technical data sheet.  Transport your gun empty and with the rack fully closed.

Clean barrel and lubricate spreader thread with damp cloth after each use. Do not use chemicals or similar which may damage parts. Never immerse tool in liquid or allow liquid to get inside the tool.  Lubricate barrel with silicone spray after every 10 sachets of adhesive.

Never allow dirt and dust to enter the rack mechanism.  Never use an applicator with a broken or bent barrel or rack.  Always check dispenser hole is clear before loading a new adhesive sachet.  Avoid getting adhesive on battery pack.
