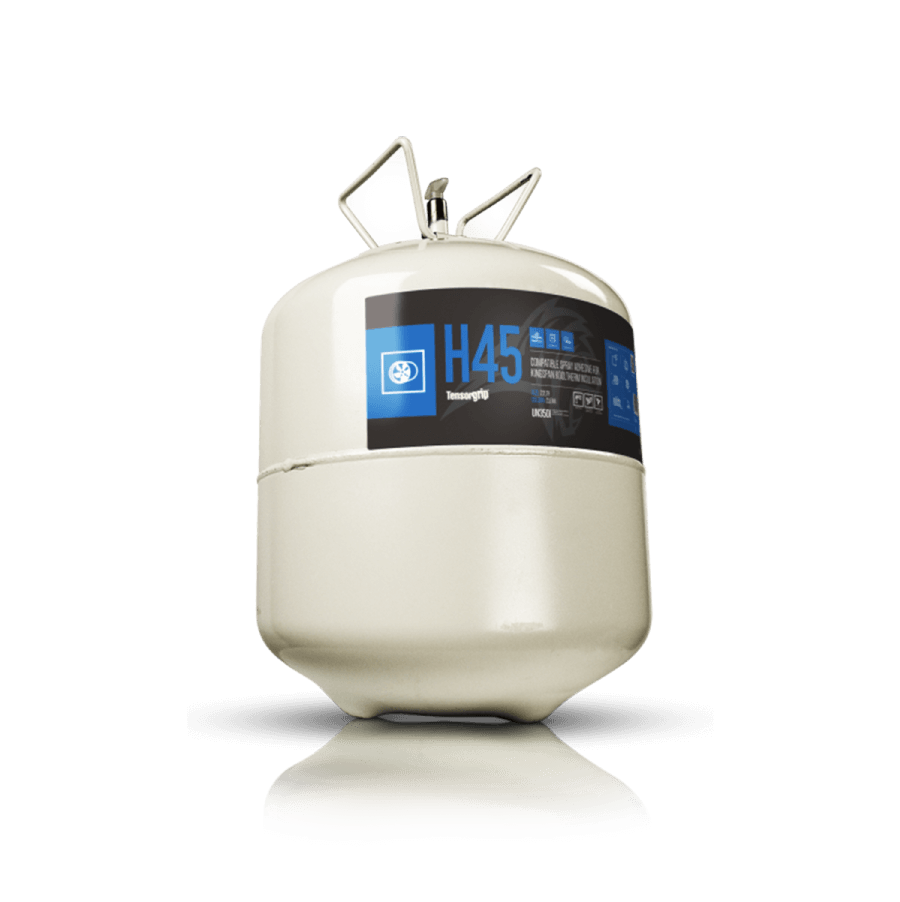

Tensorgrip H45 Compatible Spray Adhesive for Kingspan Kooltherm Insulation

Product overview

Developed to create high performance bonds between metal ductwork and rigid insulation boards such as Kingspan Kooltherm Duct Insulation, TensorGrip H45 has very high tack enabling users to bond successfully in the most demanding applications. After the adhesive has cured, the bond line is extremely resilient and tough, ensuring lifelong performance. The H45 sprays in a consistent web spray pattern, which is highly controllable when using the professional spray gun with a Lechler tip.

Featured properties

• Fast Drying
• Good Heat Resistance
• Very High Solids
• Portable Systems
• Non-Chlorinated Adhesive
• Easy Application Control
• Low VOC

Developed For

• Aluminum
• Insulation

• This product is designed to be applied to two surfaces to be bonded together. For best results, the temperature of the adhesive and the surfaces being bonded should be between 60 °F - 80 °F (16 °C - 27 °C).
• Use with adequate ventilation. When possible we recommend shaking the canister well before using.
• Attach and secure hose tightly onto the spray gun with required tip. Attach the other end of the hose onto the canister. Make sure the hose-valve connections are securely tight. Open the valve on the canister slowly and fully, check for leaks during this process. Unlock the trigger on the spray gun to start spraying.
• Prior to use, check compatibility by spraying a small test patch of the adhesive on the substrate. This product may degrade some substrates.

1. Make sure that surfaces are clean, dry and free from dirt, dust, oil, loose paint, wax or grease, etc.

2. Spray about 10-20 cm (4” – 8”) away at a 90 degree angle to the surface, applying a uniform, even coat of adhesive to obtain 80% to 100% coverage of the surface. If necessary, spray another coat of adhesive in areas that appear to need more adhesive.

3. Spray both surfaces to be bonded, one surface vertically and the other surface horizontally.

4. Allow 2 - 3 minutes for the adhesive to tack off until no adhesive transfers to the knuckle when touched.
